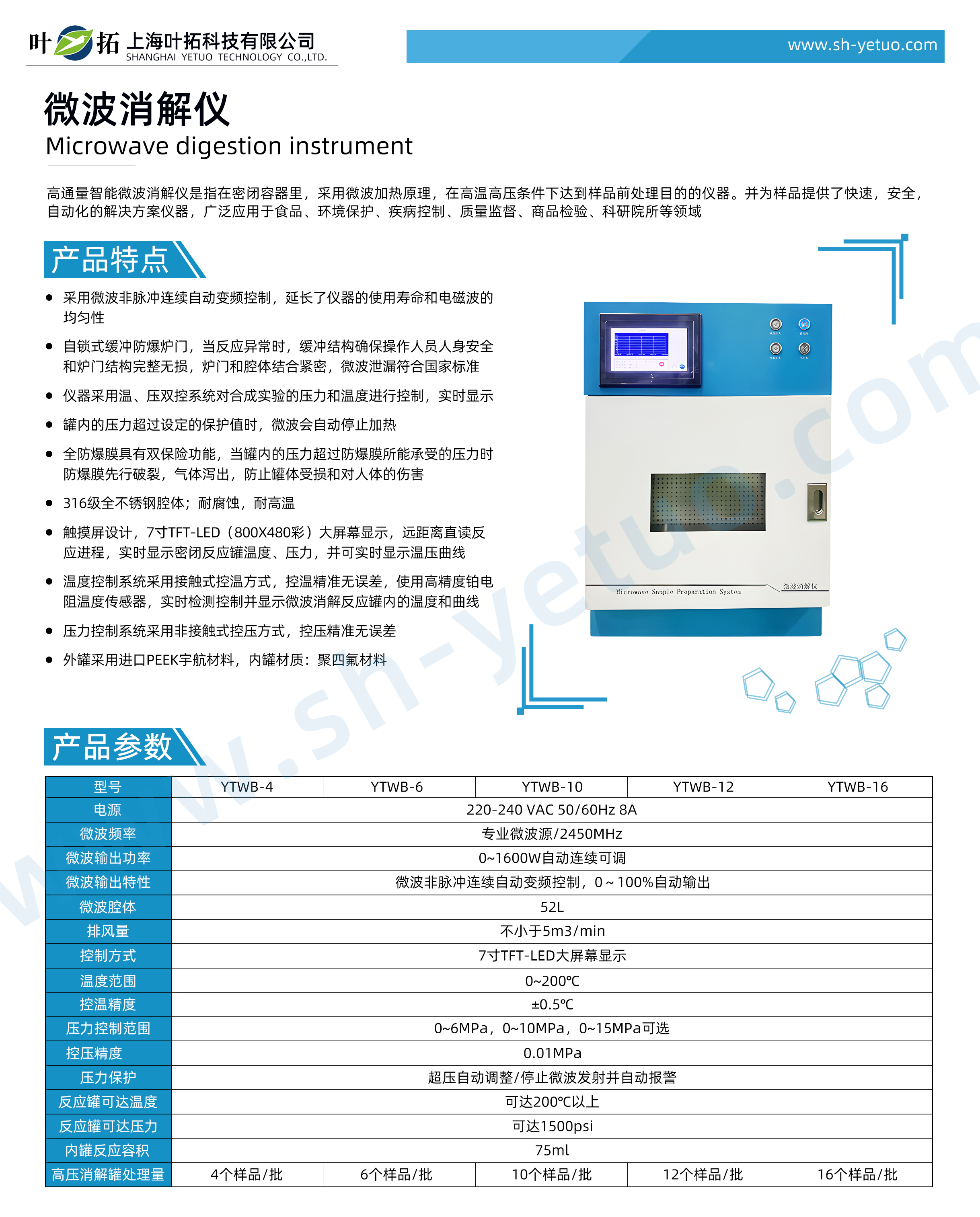

Ye Tuo YTWB-4 microwave digestion instrument

Model: YTWB-4

Product Overview:

High throughput intelligent microwave digestion instrument refers to an instrument that uses the principle of microwave heating in a closed container to achieve sample pretreatment under high temperature and pressure conditions. And it provides fast, safe and automated solution instruments for samples, widely used in fields such as food, environmental protection, disease control, quality supervision, commodity inspection, and scientific research institutions.

Product characteristics of Ye Tuo YTWB-4 microwave digestion instrument

The use of microwave non pulse continuous automatic frequency conversion control extends the service life of the instrument and the uniformity of electromagnetic waves

● Self locking buffer explosion-proof furnace door. In case of abnormal reaction, the buffer structure ensures the personal safety of operators and the integrity of the furnace door structure. The furnace door and chamber are tightly combined, and microwave leakage meets national standards

The instrument adopts a temperature and pressure dual control system to control the pressure and temperature of the synthesis experiment, with real-time display

When the pressure inside the tank exceeds the set protection value, the microwave will automatically stop heating

The full explosion-proof membrane has a dual safety function. When the pressure inside the tank exceeds the pressure that the explosion-proof membrane can withstand, the explosion-proof membrane will first rupture, causing gas to escape, preventing damage to the tank and harm to human health

316 grade all stainless steel chamber; Corrosion resistance and high temperature resistance

● Touch screen design, 7-inch TFT-LED (800X480 color) large screen display, long-distance direct reading of reaction process, real-time display of closed reaction tank temperature and pressure, and real-time display of temperature and pressure curve

The temperature control system adopts a contact type temperature control method, which is precise and error free. It uses high-precision platinum resistance temperature sensors to detect, control, and display the temperature and curve inside the microwave digestion reaction tank in real time

The pressure control system adopts a non-contact pressure control method, with precise and error free pressure control

The outer tank is made of imported PEEK aerospace material, while the inner tank is made of PTFE material
